Katalóg

Katalóg obsahuje najčastejšie používané prvky zapojení.

Pasívne prvky

resistor(,E);llabel(,R_1,);rlabel(,10k,)

resistor(,E);llabel(,R_1,);
b_current(i);
rarrow(u);

resistor(,E);variable(,A,,elen_*0.65);

capacitor(,,,0.55,0.15);
llabel(,C_1,);rlabel(,100 nF,);

capacitor(,K+,,0.55, 0.18);
llabel(,C_1,);rlabel(,10 \mu F,)

inductor(,L,6);
llabel(,L_1,);rlabel(,100 \mu H,);

L1:[Q: inductor(,L,6); linethick_(2);
line dimen_*0.7 at Q.c + (0,0.25);];
"$L_1$" at L1.n above;

TR:[Q:transformer(down_ 1.5,L,6,W,4);
 line from Q.S1 to (Q.S1,Q.P1);
 line from Q.S2 to (Q.S2,Q.P2)];
 "$L_1$" at TR.w rjust; "$L_2$" at TR.e ljust;

line 1.5; l_current(i_1,above,0.5); dot;
{ line right_ 1 up_ 1; l_current(i_2,above rjust)
};
line right_ 1 down_ 1;l_current(i_3,above ljust);

Aktívne prvky

   line -> right_ 1;
OA:opamp(,"","",);
   "$\displaystyle \int $" at OA.w + (0.25,0);

Grafické prvky

sinusoid(1.0, pi_*4/10,-pi_/2, 0, 10);

hatchbox(wid 3 ht 1.5,,dashed,angle=125 );

shadebox(box wid 3 ht 1.5 "text", 2);

for x = 0 to 10  by 0.05 do
   { line to (x, rand()*0.25); } ;

Pracovná plocha

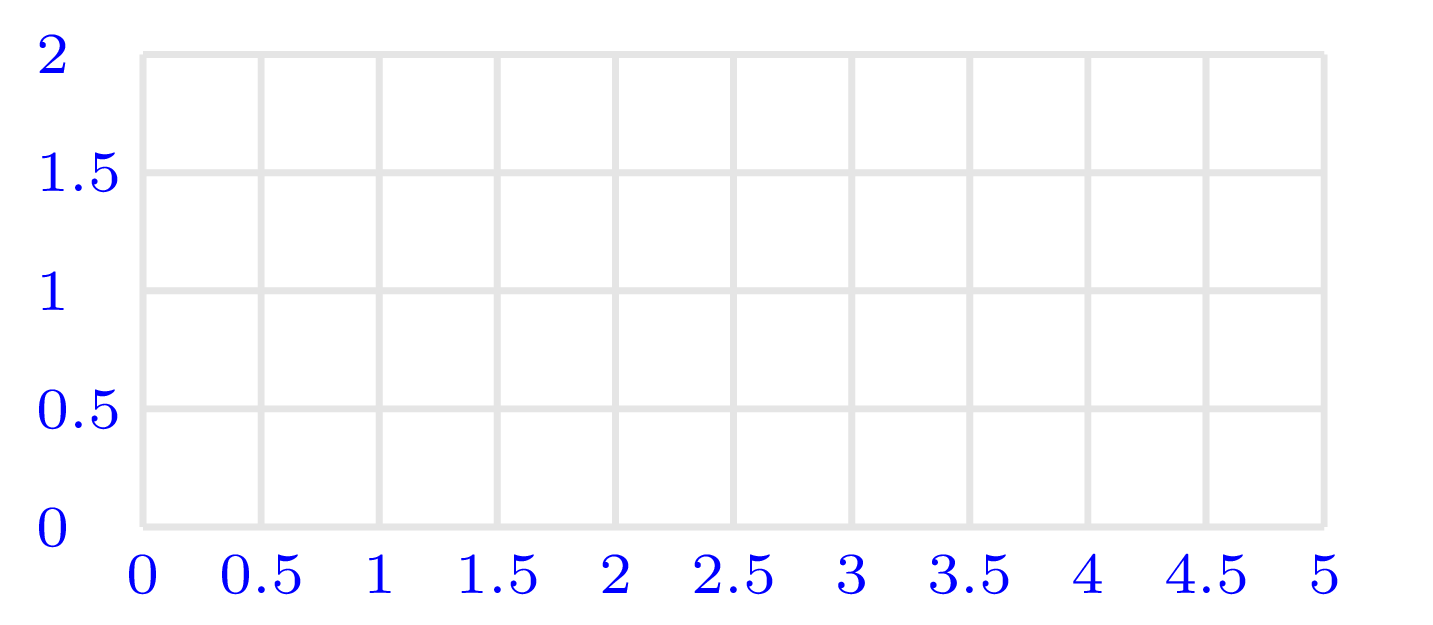

Grid(5,2);
