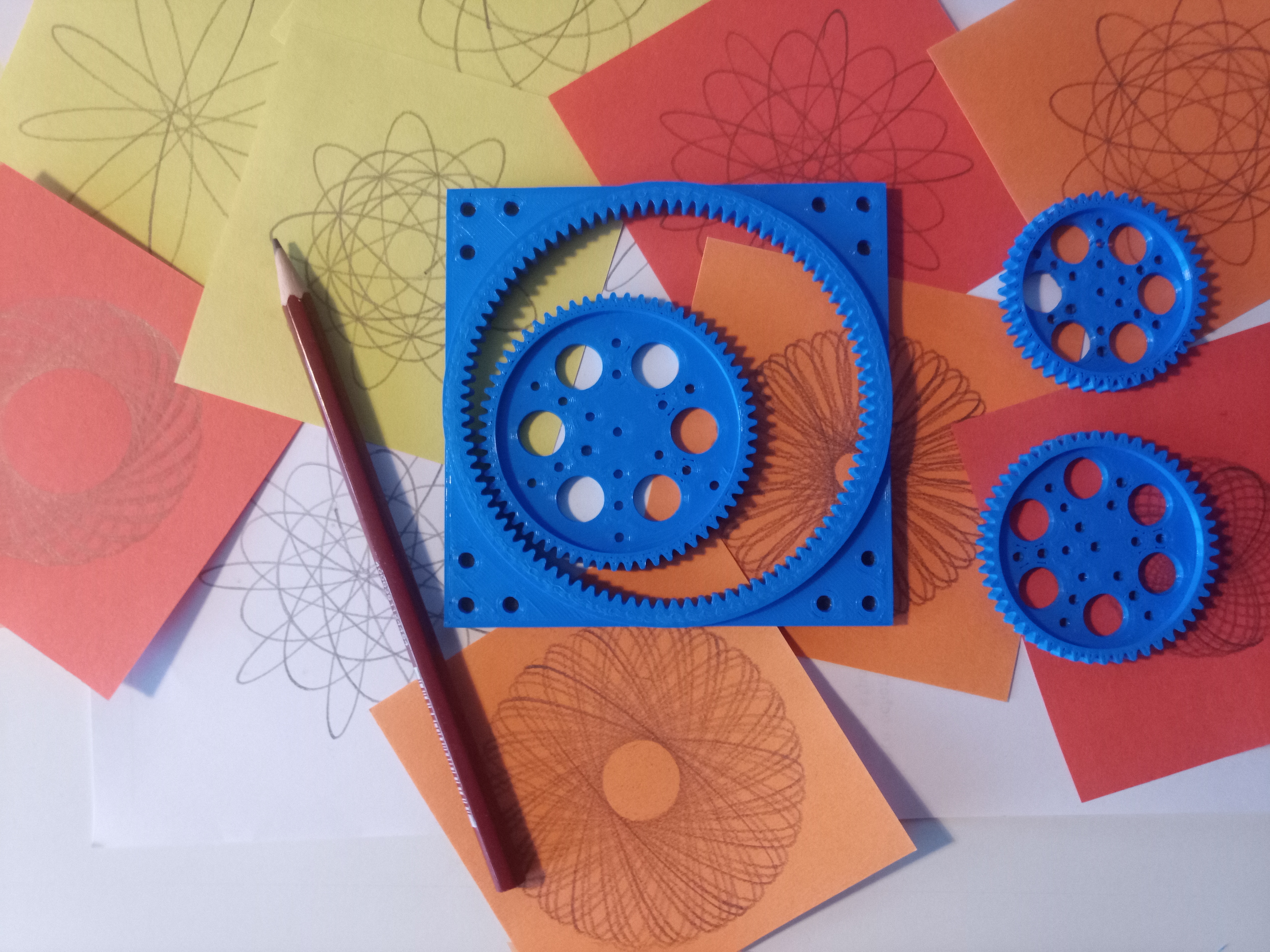

Spirograf

S využitím knižnice pre návrh ozubených kolies možeme programom vytvoriť diely pre jednoduchý spirograf. Návrhom ozubených koles s rôznym počtom zubov môžeme dosiahnúť rôznu periódu pri ktorej sa budú krivky opakovať.

Návrh

Základňa spirografu

from lib import *
from lib.utils import *
rg = Ring_Gear(90, 1/2, 1/4+1/8)
bs = BU_Cube([10, 10, 1/4]).BU_Tz(1/4/2)
cc = BU_Cylinder(9+1/4,1, hole=False, center=True)

ar = array([ [-4,-4], [-4,-3], [-3,-4],
              [5, 5], [ 5, 4], [ 4, 5],
              [5,-4], [ 5,-3], [ 4,-4],
              [-4,5], [-4, 4], [-3, 5]]) -[1/2,1/2]

hh = Hole_List(ar)

bs.D([cc, hh])
bs.U([rg])
convert_to_image(bs, './src/sp_base_90')

#bs.export_step('sp_base_90')

Obr. 50 Základňa spirografu

Ozubené kolesá

sg = Spur_Gear(50, bore=2.5)
c2 = BU_Cylinder(4+1/2, 1/2, hole=False, center=True).BU_Tz(1/2)
sg.D(c2)

dp = 60/180*pi
arr = []
for i in range(6,22):
    x = (i*0.092)*cos(i*dp)
    y = (i*0.092)*sin(i*dp)
    arr.append( BU_Cylinder(.25, 1, hole=False, center=True).BU_Txy(x,y) )

for i in range(6):
    x = (1.55)*cos(i*dp + pi/6)
    y = (1.55)*sin(i*dp + pi/6)
    arr.append( BU_Cylinder(1, 1, hole=False, center=True).BU_Txy(x,y) )

sg.D(arr)
convert_to_image(sg, './src/sp_gear_50')

#sg.export_step('sp_gear_50')

Obr. 51 Ozubené koleso, 50 zubov

sg = Spur_Gear(40, bore=2.5)
c2 = BU_Cylinder(3+2/4, 1/2, hole=False, center=True).BU_Tz(1/2)
sg.D(c2)

dp = 60/180*pi
arr = []
for i in range(6,22):
    x = (i*0.07)*cos(i*dp)
    y = (i*0.07)*sin(i*dp)
    arr.append( BU_Cylinder(.25, 1, hole=False, center=True).BU_Txy(x,y) )

for i in range(6):
    x = (1.22)*cos(i*dp + pi/6)
    y = (1.22)*sin(i*dp + pi/6)
    arr.append( BU_Cylinder(0.8, 1, hole=False, center=True).BU_Txy(x,y) )

sg.D(arr)
convert_to_image(sg, './src/sp_gear_40')

#sg.export_step('sp_gear_40')

Obr. 52 Ozubené koleso, 40 zubov

sg = Spur_Gear(65, bore=2.5)
c2 = BU_Cylinder(5+1/2+1/8, 1/2, hole=False, center=True).BU_Tz(1/2)
sg.D(c2)

dp = 60/180*pi
arr = []
for i in range(6,22):
    x = (i*0.12)*cos(i*dp)
    y = (i*0.12)*sin(i*dp)
    arr.append( BU_Cylinder(.25, 1, hole=False, center=True).BU_Txy(x,y) )

for i in range(6):
    x = (1.9)*cos(i*dp + pi/6)
    y = (1.9)*sin(i*dp + pi/6)
    arr.append( BU_Cylinder(1.4, 1, hole=False, center=True).BU_Txy(x,y) )

sg.D(arr)
convert_to_image(sg, './src/sp_gear_65')

#sg.export_step('sp_gear_65')

Obr. 53 Ozubené koleso, 65 zubov

Diely

Počet	Popis	Farba	Súbor (step)
1	Základňa spirografu, 90 zubov	modrá	sp_base_90
1	Ozubené koleso, 40 zubov	modrá	sp_gear_40
1	Ozubené koleso, 50 zubov	modrá	sp_gear_50
1	Ozubené koleso, 65 zubov	modrá	sp_gear_65
